With upward and over-sliding doors with insulated door panels, our Gliderol Sectional Overhead Door provides excellent all-around weather sealing, ideal for pharmaceutical and clean-room type facilities.
Get a QuoteModern facilities increasingly require doors that deliver insulation, efficiency, and safety. The Gliderol Sectional Overhead Door is exactly designed to meet these needs with an upward-acting design and insulated door panels.
Our sectional overhead door is designed for openings where heat or sound insulation is required, as well as for closing the larger openings required for industrial buildings.
Designers are increasingly opting for upward-acting doors for their buildings instead of sliding systems, for greater efficiency in door operation as well as to avoid having to provide for the sliding space required at the sides of the openings.
With increasing emphasis on safety, an upward-acting sectional overhead door needs to be equipped with features and devices that will reduce the possibility of the door falling and causing injury or damage to property.
With advanced counterbalancing and integrated anti-break mechanisms, our sectional overhead door is built to prevent mechanical failures and ensure safe, consistent operation.

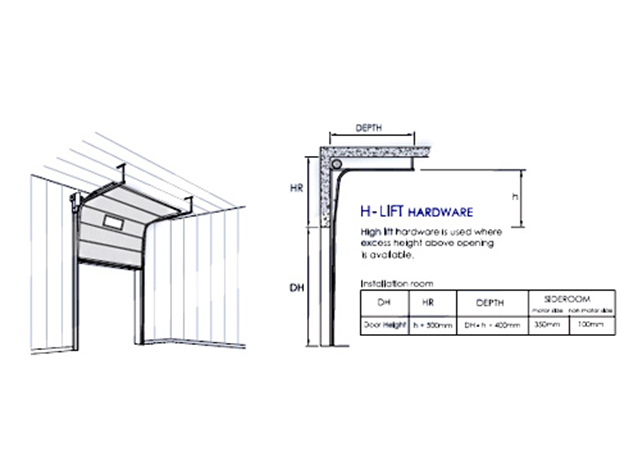

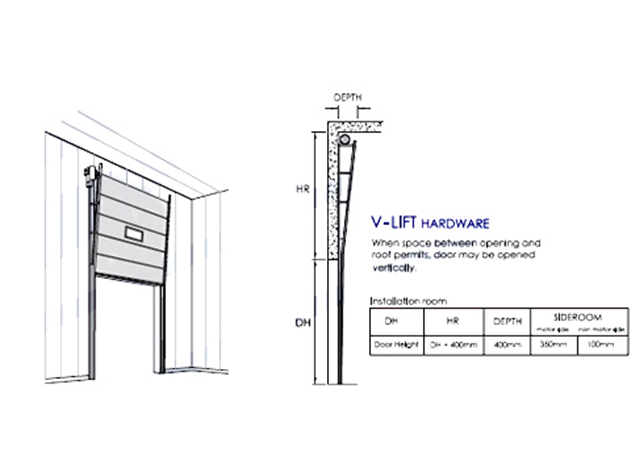

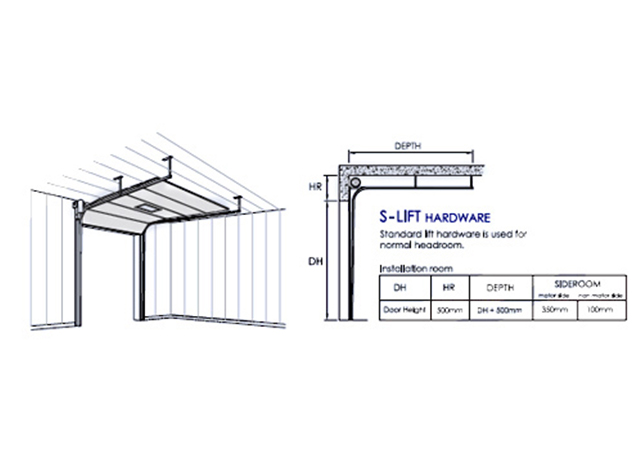

The door system offers flexible routing options, allowing the door travel path to be configured to suit different building layouts using S-Lift, H-Lift, or V-Lift track systems.
The Gliderol Sectional Overhead Door comes in a range of standard colours and can also be custom-painted to match your corporate palette.
A personnel access swing door can be integrated into the door leaf, and additional options such as viewing windows and glass lites are available.
With a focus on performance and durability, the Gliderol Sectional Overhead Door integrates heavy-duty materials, effective insulation, and trusted hardware, complemented by optional safety and automation accessories.
Door Section and Hardware
| Door Description | Heavy-duty Industrial Sectional Overhead Doors |
|---|---|
| Door sections | 500mm high sandwich sections 42mm thk, with 0.5mm thk stucco-embossed steel outer and inner skins |
| Insulation foam | CFC-free process injected polyurethane foam |
| Insulation value through the section | U-value 0.5W/m²K |
| Acoustic insulation | R = Approx. 22dB |
| Door tracks | 2.0mm thk rolled-formed galvanised steel track |
| Counterbalancing springs | Helically wound oil-tempered stress-relieved torsion springs |
Electrical Drive
| Drive | Direct or via sprocket and chain driven by side-mounted gearmotor |
| Motor rating | 500 W |
| Motor torque | 100 Nm |
| Operator reduction ratio | 45:1 |
| Voltage | 400 V 3-phase |
| Current | 2.8A |
| Protection rating | IP54 |
| Optional Accessories | Manual chain operation |
| Radar (Motion Detectors) | |
| Magnetic loop | |
| Radio receivers & transmitters | |
| Traffic or flashing lights |
